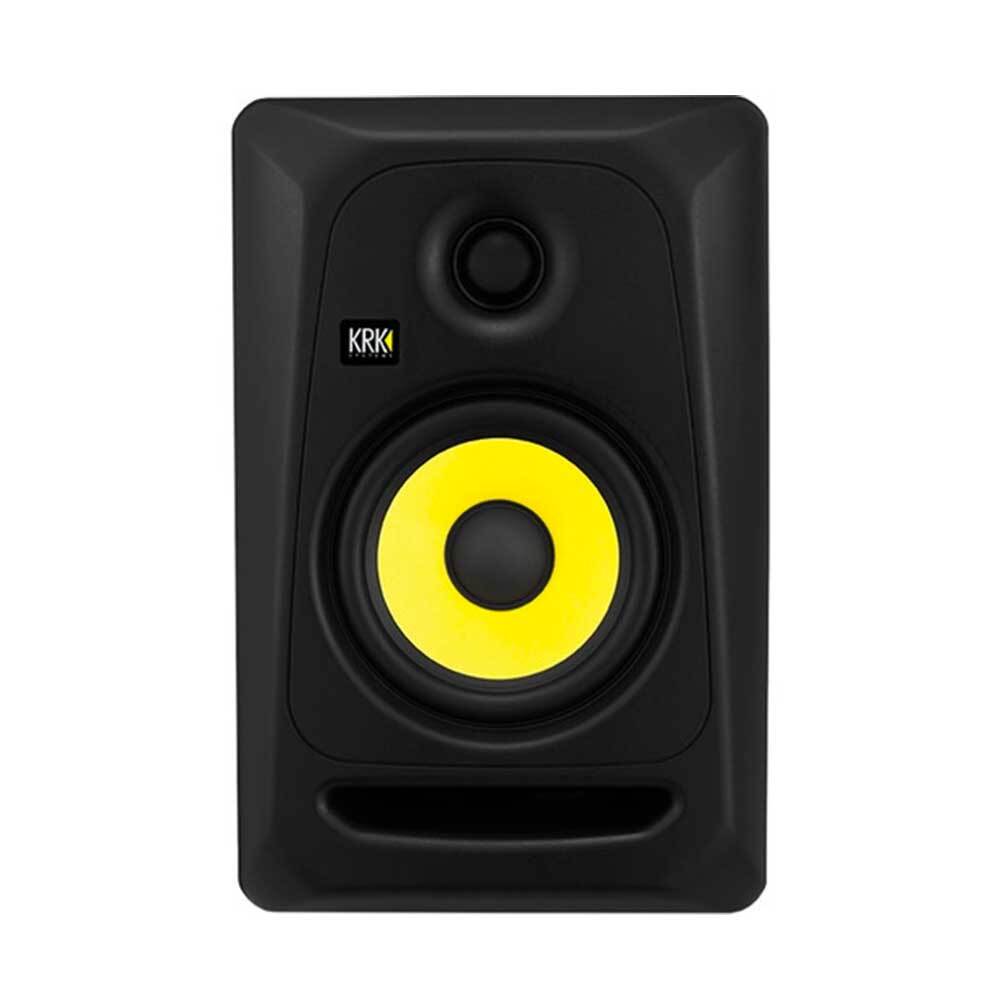

KRK Classic 5  5"  Professional Powered Studio Monitor - Black CLASSIC SERIES

Building on KRK's legacy of accuracy and performance, the new KRK Classic Series of powered studio monitors incorporate over 30 years of innovation. Borrowing concepts from previous ROKIT lines, the Classic Series defaults to a new flat frequency solution towards more critical listening and more accurate mixes. With the option to engage the +2 dB KRK Bass Boost, the Classic Series provides the enhanced bass response and sound that music creators around the world have loved for years. All Classic Series models deliver natural, balanced response with low distortion and superior stereo imaging. Experience every nuance with KRK studio monitors.

Classic 5 Features

• 50 watt, 5" active studio monitor / Self-powered. Amps matched to drivers; no external amp hassles
• Custom bi-amped, class A/B amplifiers / Provide high headroom and low distortion
• Heavy-duty enclosure / Durable
• Front-firing port / Allows placement flexibility (i.e. near walls) without interference from a rear-firing port
• Dedicated low and high frequency level adjustment controls / Allows you to optimize the monitor's response to better match the room acoustics and the user's personal preferences
• 5" glass aramid composite woofer / Rigid and lightweight driver for optimal sound quality
• 1" textile soft dome tweeter / Smooth high frequency response with excellent HF extension to 34.5 kHz
• Bass extension to 46 Hz / Excellent low frequency response for such a compact monitor

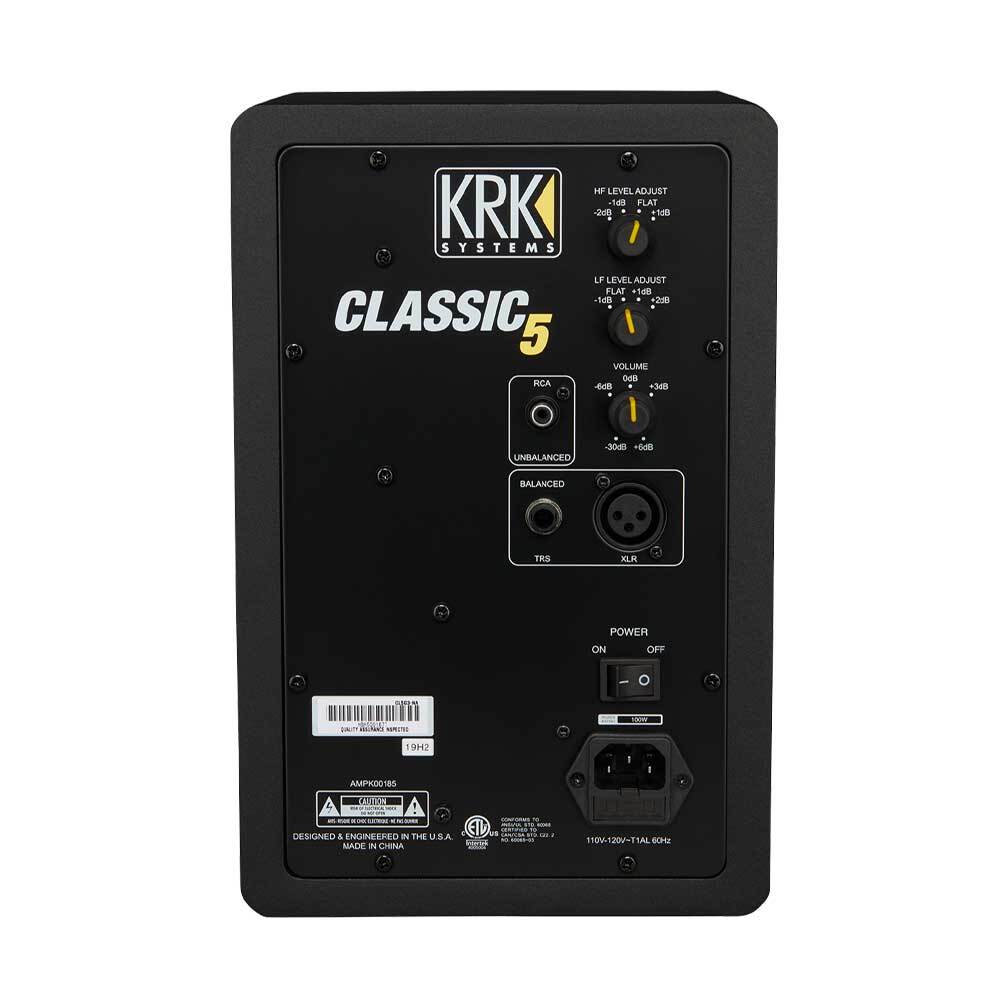

• Universal connectivity with XLR, 1/4" TRS, and RCA inputs / Interfaces with just about any mixer and/or audio interface
• Volume control / Allows you to fine-tune your overall monitoring level
• System-optimized auto-limiter / Prevents unexpected peaks from damaging the speakers and provides consistency and clarity at high volumes
• Foam isolation pads on bottom / Protects the surface the monitors are sitting on and provides isolation for improved clarity
• 101 dB Max Peak SPL

• Classic Family	Classic 5	Classic 7	Classic 8
  Configuration	2-Way	2-Way	2-Way
  System type	Active Studio Monitor	Active Studio Monitor	Active Studio Monitor
  Low-Frequency Transducer	5" Glass Aramid Woofer	7" Glass Aramid Woofer	8" Glass Aramid Woofer
  High-Frequency Transducer	1" Textile Soft Dome Tweeter	1" Textile Soft Dome Tweeter	1" Textile Soft Dome Tweeter
  Frequency Response (+/- 3dB)	56Hz - 30kHz	47.5Hz - 34.5kHz	42.5Hz - 28kHz
  Frequency Range (-10dB)	46Hz - 34.5kHz	37Hz - 40kHz	35Hz - 35kHz
  Crossover Frequency	2.6kHz	2.3kHz	2.0kHz
  Average Beamwidth (Horizontal)	133 Degrees (900 Hz — 9 kHz)	140 Degrees (900 Hz — 9 kHz)	144 Degrees (900 Hz — 9 kHz)
  Average Beamwidth (Vertcal)	90 Degrees (900 Hz — 9 kHz)	115 Degrees (900 Hz — 9 kHz)	120 Degrees (900 Hz — 9 kHz)
  Max Peak SPL (With Limiter)	101 dB	101 dB	106 dB
  Max Average SPL (With Limiter)	98 dB	99 dB	103 dB
  Max Calculated SPL	99 dB	102 dB	106 dB
  Amplifiers	Class A-B	Class A-B	Class A-B
  High Frequency Power Output (Watts)	20 Watts	25 Watts	25 Watts
  Low Frequency Power Output (Watts)	30 Watts	48 Watts	75 Watts
  Amplifier Distortion (THD+N)	< 0.1% THD+N 20 Hz — 20 kHz (-3 dB Max Power)	< 0.1% THD+N 20 Hz — 20 kHz (-3 dB Max Power)	< 0.1% THD+N 20 Hz — 20 kHz (-3 dB Max Power)
  Input Impedance (Ohms)	10 KΩ Balanced / 7 KΩ Unbalanced	10 KΩ Balanced / 7 KΩ Unbalanced	10 KΩ Balanced / 7 KΩ Unbalanced
  Input Sensitivity	0 dBu Balanced / -15 dBV Unbalanced	-3 dBu Balanced / -12 dBV Unbalanced	2 dBu Balanced / -15 dBV Unbalanced
  SNR (Signal to Noise Ratio)	> 94 dB	> 98 dB	> 100 dB
  Controls	System Volume -30 dB - +6 dB	System Volume -30 dB - +6 dB	System Volume -30 dB - +6 dB
  LF Level Adjust	(-1 dB, FLAT, +1 dB, +2 dB) Below 200 Hz	(-2 dB, -1 dB, FLAT, +2 dB) Below 200 Hz	(-2 dB, -1 dB, FLAT, +2 dB) Below 200 Hz
  HF Level Adjust	(-2 dB, -1 dB, FLAT, +1 dB) Above 2.6 kHz	(-2 dB, -1 dB, FLAT, +1 dB) Above 2.3 kHz	(-2 dB, -1 dB, FLAT, +1 dB) Above 2.0 kHz
  Indicators	Power	Power	Power
  Input Connectors	RCA, Balanced 1/4" TRS, Balanced XLR	RCA, Balanced 1/4" TRS, Balanced XLR	RCA, Balanced 1/4" TRS, Balanced XLR
  Ouput Connectors	N/A	N/A	N/A
  AC Fuse (Slow Blow / Time Lag)	120 VAC (T1AL, 250 V) 240 VAC (T500mAL, 250 V)	120 VAC (T1.6AL, 250 V) 240 VAC (T800mAL, 250 V)	120 VAC (T2AL, 250 V) 240 VAC (T1AL, 250 V)
  Idle (Mute) AC Power Consumption	14 Watts (NA SKU)	13 Watts (NA SKU)	10 Watts (NA SKU)
  Idle (Standby) AC Power Consumption	< 0.5 Watts	< 0.5 Watts	< 0.5 Watts
  Maximum AC Power Consumption	79 Watts (NA SKU)	108 Watts (NA SKU)	184 Watts (NA SKU)
  Enclosure Construction	15 mm MDF / High Impact Polystyrene	15 mm MDF / High Impact Polystyrene	15 mm MDF / High Impact Polystyrene
  Finish	Black Vinyl Wrap	Black Vinyl Wrap	Black Vinyl Wrap
  Grille	N/A	N/A	N/A
  Hardware	Foam Isolation Pads	Foam Isolation Pads	Foam Isolation Pads
  Product Dimensions (H x W x D)	11.20" (332 mm) x 7.40" (226 mm) x 9.68" (290 mm)	13.07" (332 mm) x 8.90" (226 mm) x 11.40" (290 mm)	15.60" (396 mm) x 10.82" (275 mm) x 12.40" (315 mm)
  Product Weight	12.95 lb (5.87 kg)	18.5 lb (8.39 kg)	24.6 lb (11.16 kg)
