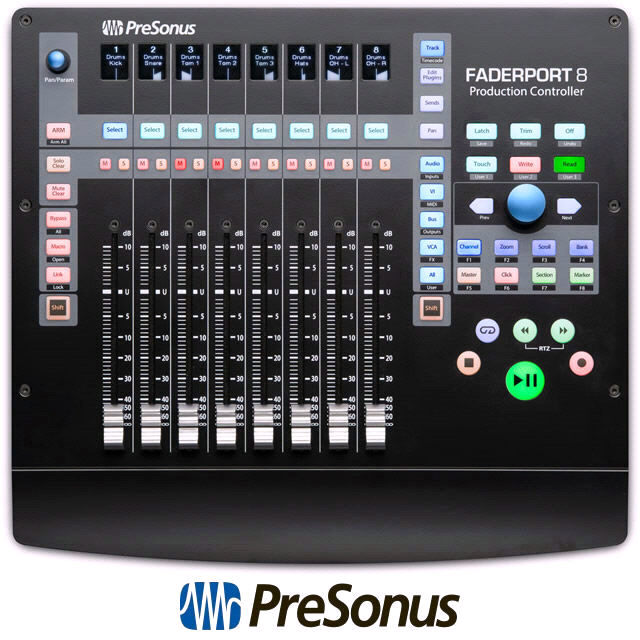

Presonus Faderport 8 Motorised DAW Controller Fader Surface

PRESONUS FADERPORT 8 MOTORISED FADERS DAW CONTROL SURFACE

Don't kill that mouse - give it a companion.

Although a keyboard and mouse are tried-and-true DAW-control devices, they're far more effective when used in tandem with the FaderPort 8's precise tactile control over mix and automation functions. With 8 touch-sensitive, motorized, 100 mm faders and 57 buttons covering 78 different functions, you can quickly zoom in on audio files for editing, adjust your click-track tempo with a simple tap, modify plug-in parameters, manage aux mixes and, of course, control track levels with the touch of a finger. With the FaderPort 8, you'll enjoy the fastest, most efficient workflow you've ever experienced.

PreSonus—FaderPort 8 is here!

Video will open in a new window

Using the mobile app? Copy this link into your browser:

Features

8 touch-sensitive, 100 mm long-throw, motorized faders
8 high-definition Scribble Strip displays
Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
Drop Marker, Next/Prev Marker, Next / Prev Event
General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Track Management, Click On/Off with tap tempo
Session Navigator provides quick control over track scrolling, channel banking, timeline scrolling, and much more
Channel Controls: Level, Pan, Solo, Mute, Rec Arm
Automation Controls: Touch, Latch, Trim, Write, Read, Off
Optional Fader functionality: plug-in edit, bus sends, pan
macOS® / Windows® compatible with native Studio One® support and HUI and Mackie Control Universal emulation*
Footswitch input for hands-free start/stop
USB 2.0 connectivity

Work faster and smarter.

Rather than forcing you to revise your mixing method, the FaderPort 8 augments the way you currently mix. You still use your faithful keyboard and mouse for things they do well, and the FaderPort 8 handles the features you want to get your fingers on, allowing you to customize your workflow. Large, illuminated buttons make finding the function you need quick and easy. Eight high-definition digital scribble strips provide visual feedback. And if you select a track with your mouse, the FaderPort 8 will follow your selection, giving you yet another way to get to the function you need, right when you need it. This is DAW control the way you always hoped it could be!

One-button access to key functions.

The FaderPort 8's unique Session Navigator provides easy access to eight mission-critical functions for maximum flexibility. Dedicated buttons are provided to instantly arm all tracks for recording; control mutes and Solo Clear; view only the tracks, buses, and VCAs you want so see; and more. You're not limited to preset controls, either: Four programmable User buttons let you quickly and easily access your favorite functions.

Universal compatibility and tight Studio One® integration.

FaderPort 8's streamlined workflow and support for the Mackie Control and HUI protocols make it fast and easy to control virtually any DAW. No driver installation is necessary; just plug the control surface into a USB port and take command of your mix and plug-ins.

But the FaderPort 8 is downright magical when used with PreSonus Studio One. (Studio One Artist is included.) You'll be amazed how much faster you can work.

An amazingly fast, efficient studio workflow awaits you!

With the compact, easy-to-use FaderPort 8, you'll enjoy the fastest, most efficient workflow you've ever experienced. But don't just take our word for it; visit your favorite PreSonus dealer and try the FaderPort 8 for yourself!

Computer system requirements:

Below are the minimum computer-system requirements for the FaderPort 8:

Mac®

macOS® 10.8.5 or higher
IntelÂ®Core 2 Duo processor (Intel Core i3 or better recommended)

WindowsÂ®

Windows 10 x64/x86, Windows 8.1 x64/x86, Windows 7 x64/x86 SP1 + platform update
Intel Core 2 Duo or AMDÂ® Athlon X2 processor (Intel Core i3 or better recommended)

Windows and Mac Systems

FaderPort 8 firmware 1.0.1 or later (requires Universal Control v.1.8.3 or later)
USB 2.0 port
Internet connection required for driver and bundled software installation
Universal Control v.1.8.3 (for firmware updates)

PreSonus FaderPort 8 has been tested and approved to work with the following software:

Native Mode
- PreSonusÃ‚Â® Studio OneÃ‚Â® 3.3.2 or later
HUI Emulation
- Supported by Pro Tools
Mackie Universal Control Emulation
- Supported by Logic, Cubase, Ableton, Nuendo, Bitwig, Reaper, Reason, and more

As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.

Note: A firmware update is currently required for full functionality. Please download and install Universal Control version 1.8.3 or later and run the firmware updater when prompted. See the FaderPort 8 Owner's Manual for instructions.

Technical Specifications

Input / Output
	1 USB 2.0 port
	1 Footswitch jack for hands-free stop/start

Faders
	8 100 mm long-throw, touch-sensitive, motorized faders
	Dual-servo motorized drive belt system for fast and quiet operation
	Ultra-smooth feel and lightning fast
	Heavy-duty construction
	Resolution: 10-bit, 1,024 steps

Buttons and Knobs
General Controls	Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Click On/Off, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins
Channel Controls	Level, Pan, Solo, Mute, Select, Rec Arm
Automation Controls	Touch, Latch, Trim, Write, Read, Off
Optional Fader Functionality	Plug-in Edit, Bus Sends, Pan
Window View	Mix, Project, Transport, Undo
Transport	Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly depending on the DAW.)
Navigation	Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next / Prev Event, Nudge
Console Management	Show/Hide: Audio Track, Inputs, MIDI Tracks, Buses, Outputs, VCA, FX; Show All
Displays	8 high-definition digital scribble strip displays, timecode display, channel meters
