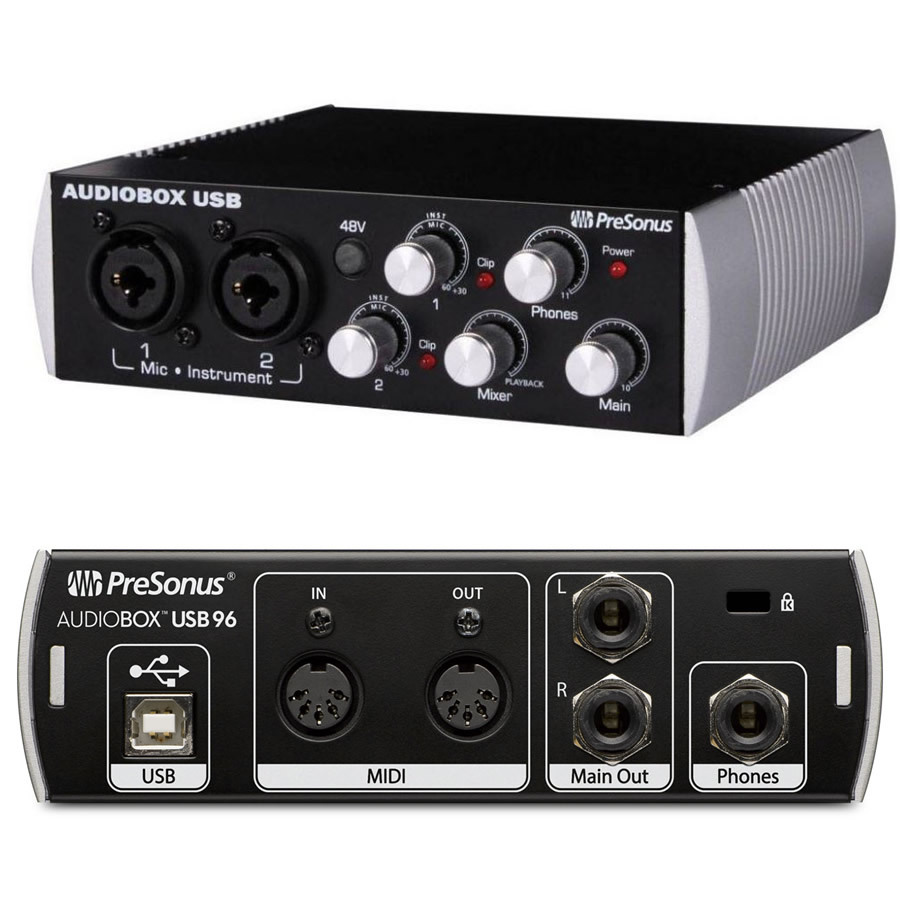

LIMITED EDITION BLACK MODEL WHILE  STOCKS LAST!!!

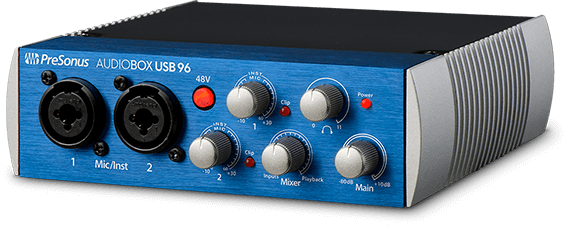

PRESONUS AUDIOBOX USB 96 AUDIO RECORDING INTERFACE WITH STUDIO ONE V3

Whether you are a musician, producer, or podcaster on a tight budget, the AudioBox USB® 96 is for you! This simple, handy little recording interface has just the right features for basic recording needs, allowing you to plug in and start recording up to 24-bit, 96 kHz audio right away. Bus-powered and built to travel, the AudioBox USB 96 makes recording easy.

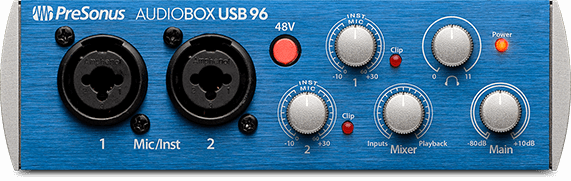

  • 2 dual-purpose front-panel input channels, each with high-quality mic preamplifiers
  • 2 combo mic/instrument inputs
  • Individual channel-trim controls with 0 to +35 dBu mic gain range
  • 48V phantom power for condenser microphones
  • Mixer control (blends the input signal with the computer playback stream for zero-latency monitoring)
  • Headphone jack with level control
  • Main-output level control
  • LED clip indicator for each channel

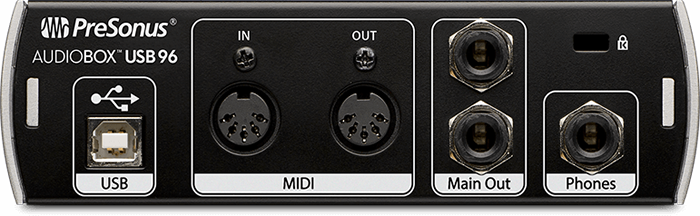

Input/Output

  • 1 USB 2.0 port
  • 2 combo XLR/¼” mic/instrument inputs
  • 2 balanced ¼” main (L/R) line outputs
  • 1 stereo ¼” headphone output
  • MIDI in/out

Digitalia

  • 24-bit resolution and 44.1, 48, 88.2, and 96 kHz sampling rate
  • Professional-grade A/D/A converters (+105 dBu dynamic range)
  • Zero-latency monitoring via internal mixer
  • Compatible with most Mac® and Windows® recording software

Included Software

  • Studio One® 3 Artist

Physical

  • 1/3U rack-mountable (with optional 3UMR rack-mounting system)
  • Road-rugged construction with all-metal chassis and metal knobs
  • Weighs just 5 lbs (2.3 kg)
  • Powered via USB bus - no wall wart!



Just the right size.

The AudioBox USB 96’s two front-panel combo mic/instrument inputs make it ideal for singer/songwriters, podcasters, and guitar or guitar-bass collaborations. Simply connect a couple of mics and you have an easy-to-use stereo recording system. A mix control lets you control the level between the input signal and computer playback, without hearing annoying delays. You also get a pair of balanced line-level outputs, an ultra-loud, crystal-clear headphone out, plus MIDI I/O, so you can connect your favorite synth or MIDI controller. The result is a simple, affordable, mobile recording solution.

Roadworthy and ready to travel.

Here is a mobile interface in the best sense of the term. We gave the AudioBox USB 96 a heavy-duty steel chassis so it can take a serious pounding and remain completely reliable. Its screaming-loud headphone output ensures you can hear your music loud and clear, even in noisy locations. And it’s USB 2.0 bus-powered, so you can record with it anywhere you can use a laptop. Simply drop it in your laptop bag or slap it on a tabletop.

World-class recording software included.

While the AudioBox USB 96 works with virtually all Mac and Windows audio-recording software, it comes with a free license for PreSonus’ Studio One® Artist DAW, giving you a complete recording solution. Built by creative people for creative music production, Studio One is easy to learn and enables you to compose, record, and produce your masterpiece without getting distracted by the tools. Studio One also enjoys a robust online community of enthusiastic and helpful users you can turn to for advice.

Built for the studio and the road.

Whether you're just getting into recording or are a veteran producer who wants to go mobile, the AudioBox USB 96 will give you great sound in a bus-powered, rugged chassis that's ready to hit the road when you are. The perfect companion for any recording software, the AudioBox USB 96 comes equipped with Studio One Artist to provide you with a complete recording solution right out of the box.

Now includes Studio Magic plug-in suite.

This suite of plug-ins brings extended sonic functionality into Studio One. Cherry-picked from the first names in virtual instruments and effects, each one brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies — these are real-deal workhorses that you'll find yourself relying on for countless mixes.

Computer system requirements:

Below are the minimum computer-system requirements for AudioBox USB 96.

Mac

  • Mac® OS X 10.8.5 or later
  • Intel® Core Duo processor (Intel Core 2 Duo or Intel Core i3 or better recommended)
  • 2 GB RAM (4 GB or more recommended)

Windows

  • Windows® 7x 64/x86 SP1 or Windows 8/8.1 x64/x86 or Windows 10 x64/x86
  • Intel Core 2 processor (Intel Core i3 processor or better recommended)
  • 4 GB RAM (8 GB or more recommended)

Windows and Mac Systems

  • USB 2.0 Port
  • Internet connection (for activation)
  • Monitor with at least 1024x768 resolution
  • 20 GB hard-disk space
  • Internal or external 7200 RPM storage drive highly recommended

The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.

Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system.

Technical Specifications

Microphone Preamp


Type XLR Female Balanced
Frequency Response (±3.0 dB) 20 Hz to 20 kHz
Input Impedance (Balanced) 1200
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB
Common Mode Rejection Ratio (1 kHz, 55 dB Gain) > 45 dB
Gain Control Range (± 1 dB) 0 dB to 35 dB
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu
Phantom Power (±2 VDC) +48 VDC

Instrument Input


Type ¼" TS Female Unbalanced
Input Impedance 0.5 MΩ

Line Outputs


Type ¼" Balanced
Output Impedance 51

Headphone Output


Type ¼" TRS Active Stereo
Maximum Output 60 mW/Ch @ 60 Load
Frequency Response (±1.0 dB) 20 Hz - 30 kHz

MIDI I/O


Type Dual 5-pin Female DIN

Digital Audio


ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) 105 dB
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) 105 dB
Bit Depth 24
Reference Level for 0 dBFS +4 dBu
Internal Sample Frequency Selections (kHz) 44.1, 48, 88.2, 96
Power USB 2.0 bus-powered

Physical


Dimensions 1/3U (steel chassis)
Height 5.5” (139.7 mm)
Depth 1.75" (44.45 mm)
Width 5.5” (139.7 mm)
Weight 5 lbs (2.27 kg)

As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.





















SKU PRE-AB-USB96-BK
Barcode # 673454009242
Brand PreSonus
Shipping Weight 2.2000kg
