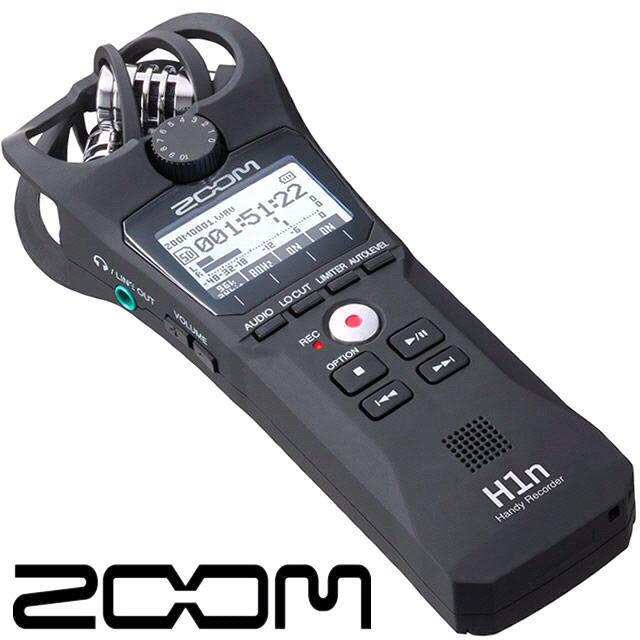

Zoom H1N Ultra Portable Stereo Digital sd recorder

ZOOM H1N PORTABLE FIELD RECORDER WITH XY MICROPHONES

Creators everywhere are using Zoom Handy Recorders to capture sound
and sample audio like never before.

The new H1n is the ultimate take-anywhere recorder for every creator's gear bag.

The Zoom H1n

Video will open in a new window

Using the mobile app? Copy this link into your browser:

Features at a
Glance

One-touch button controls
1.25inch� monochrome LCD display
Intuitive menus for easy operation
Stereo X/Y 90°microphones handle up to 120 dB SPL
Stereo" Mic/Line In mini phone jack
Stereo " Phone/Line Output jack with dedicated
volume control
Limiter button for input signal up to 120 dB SPL
Playback Speed Control, Voice Emphasize Filter,
and Stereo Bounce functions
Auto-Record, Pre-Record, and Self-Timer functions
Supports up to 24-bit/96 kHz audio in BWF-compliant
WAV or a variety of MP3 formats
Tone generator for filmmaking use with DSLR
and video cameras

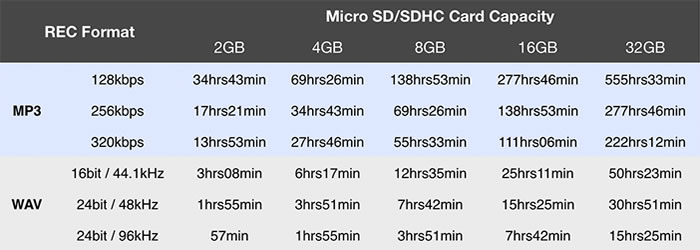

Records directly to SD and SDHC cards up to 32 GB
Micro USB port for data exchange to and from computer
and use as an audio interface
Runs on only 2 standard AAA alkaline, Lithium, or
NiMH rechargeable batteries, or AC adapter (AD-17)
Up to 10 hours of operation with alkaline batteries

Zoom Your Audio Anywhere and Everywhere

The H1n's X/Y microphones capture high-quality stereo sound, supporting up to 24-bit audio at sampling
rates of 44.1, 48, or 96 kHz in WAV and various MP3 formats.

New Controls

With the H1n, we've redesigned the user experience. One-touch button controls make it simple to record songs, audio-for-film, lectures, podcasting, and more. And its new monochromatic 1.25 inch� LCD display is easy to read even in the brightest lighting conditions.

Distortion-Free Recording

An advanced onboard limiter offers distortion-free signal up to 120 dB SPL,
cleanly recording the loudest of bands.

A low-cut filter also helps eliminate pops and unwanted low frequency rumble.

Unlimited Overdubbing

The overdub function lets you add layers of audio, allowing
for richer and fuller sounding recordings.

Transcription Made Easy

The H1n's Playback Speed Control lets you transcribe music, interviews and
other types of recordings without altering pitch.

Donâ€™t Miss
the Moment

You can also set the H1n to auto-record, pre-record, and self-time, making sure you always capture the moment.

Mark and Sync

New tone generator makes it easy to calibrate your H1n and camera audio levels.

The Connections You Need

An ?" stereo mic/line input lets you record with your external microphones or other sound sources, and supplies plug-in power (2.5 volts). Connect headphones via the ?" headphone output with dedicated volume control. You can also use the H1n's built-in speaker to listen to your recordings.

The H1n's USB port provides a digital output of the stereo mix and allows data to be sent to and from your computer. It also allows the H1n to be used as a USB microphone and a microSD card reader.

Free Recording Software

The Zoom H1n comes with free download licenses for Steinbergâ€™s Cubase LE music production software and WaveLab LE audio editing software.

Maximum
Capacity

The H1n is battery-powered and offers up to 10 hours of recording time.
Put it in your pocket, toss it in your backpack, or mount it to a cameraâ€”
the H1n travels wherever you do.

Accessories

What's included with the H1n

2 AAA Batteries
Steinberg Cubase and WaveLab LE
Quick Start Guide

Optional APH-1n Accessory Pack includes

Windscreen
AD-17 AC adapter
USB cable
Tripod stand
Padded-shell case
MA-2 mic stand adapter

The Zoom H1n comes with free download licenses for Steinbergâ€™s Cubase LE music production software and WaveLab LE audio editing software.
